PRODUCT DESCRIPTION

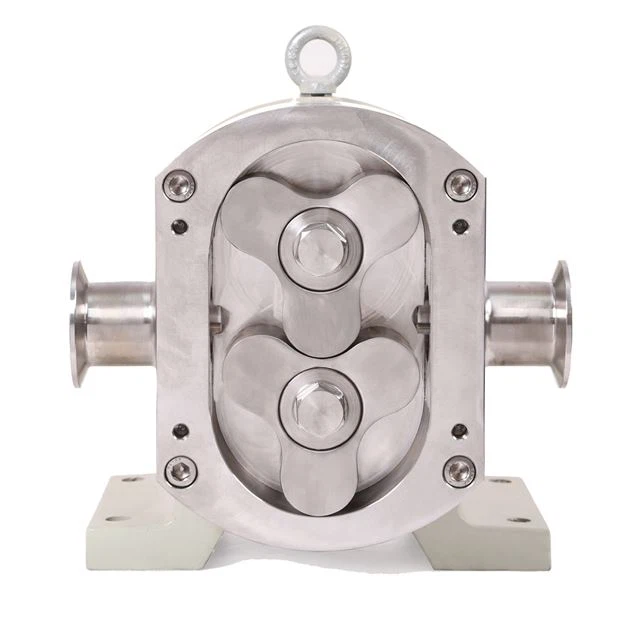

Stainless steel rotary lobe pump is a specialized type of equipment that is used to transfer and move viscous liquids. Rotary lobe pumps are positive displacement machines that employ a pair of rotating lobes that generate a steady flow of fluid.

The use of stainless steel as a material of construction in rotary lobe pumps is because it is resistant to corrosion and rust, making it an ideal choice for use in handling a wide range of fluids. This type of pump has many unique features that make it highly effective in transferring viscous liquids.

One of the most significant advantages of the stainless steel rotary lobe pump is that it is self-priming, which means that it is capable of drawing fluid from a source and pumping it out without the need for additional assistance. Additionally, this type of pump can handle a wide range of fluids, including highly viscous liquids like glues, adhesives, and heavy oils.

Stainless steel rotary lobe pumps are also highly reliable and efficient, with a low level of maintenance requirements. They have a compact design which reduces their footprint, making them ideal for use in space-constrained environments. Furthermore, they are easy to clean, and the stainless steel material reduces the potential for contamination in food, pharmaceutical, or personal care applications.

Modern rotary lobe pumps are designed with accuracy and precision, and they feature advanced bearing systems that extend the service life of the pump. The pumps are also equipped with mechanical seals that prevent leaks and ensure that the flow of fluid is secure and safe.

Finally, it is important to note that stainless steel rotary lobe pumps come in different sizes and models, with varying flow rates and pumping capabilities. When choosing a rotary lobe pump, it is important to consider factors such as the viscosity of the fluid and the desired flow rate.

In conclusion, the stainless steel rotary lobe pump is a specialized type of equipment that is used in transferring viscous liquids. It is highly reliable, efficient, and easy to maintain, making it an ideal choice for a wide range of applications in various industries. The benefits of using stainless steel as a material of construction outweigh the cost, making the pump a valuable investment for companies that require a steady flow of viscous liquids.

DATA SHEET

Model	Displacement L / 100RPM	Rotation speed	Corresponding flow rate	Power KW	Pressure	Maximum viscosity	Standard size	Connector form
YUY-Z-5	0.05	40-500	120-1500	0.55-0.75	0.1-1.2	200000	Φ25	Clamp Thread Flange
YUY-Z-10	0.10	40-500	240-3000	1.1-1.5	0.1-1.2	200000	Φ32
YUY-Z-15	0.15	40-500	320-4000	1.5-2.2	0.1-1.2	200000	Φ32
YUY-Z-20	0.20	40-500	480-5400	1.5-3	0.1-1.2	200000	Φ32
YUY-Z-35	0.35	40-450	840-9450	2.2-4	0.1-1.2	200000	Φ51
YUY-Z-45	0.45	40-450	950-10500	4	0.1-1.2	200000	Φ51
YUY-Z-65	0.65	40-400	1560-14000	5.5-7.5	0.1-1.2	200000	Φ63
YUY-Z-80	0.80	40-400	1750-17000	5.5-7.5	0.1-1.2	200000	Φ63
YUY-Z-110	1.10	40-400	2400-23500	7.5-11	0.1-1.2	200000	Φ76
YUY-Z-175	1.75	40-400	3800-37800	11-15	0.1-1.2	200000	Φ76
YUY-Z-220	2.20	40-400	4750-47500	15-18.5	0.1-1.2	200000	Φ89
YUY-Z-270	2.70	40-400	5800-58000	18.5-22	0.1-1.2	200000	Φ89
YUY-Z-365	3.65	40-400	7900-78500	22-30	0.1-1.2	200000	Φ102
YUY-Z-520	5.20	40-400	11300-110000	37-55	0.1-1.2	200000	Φ102
