PRODUCT DESCRIPTION

grade lobe pumps are specialized pumps that are specifically designed for the food processing industry. These pumps are used to transfer a variety of food products, including liquids, pastes, and slurries. Food grade lobe pumps are highly efficient and reliable, making them an essential component of food processing operations.

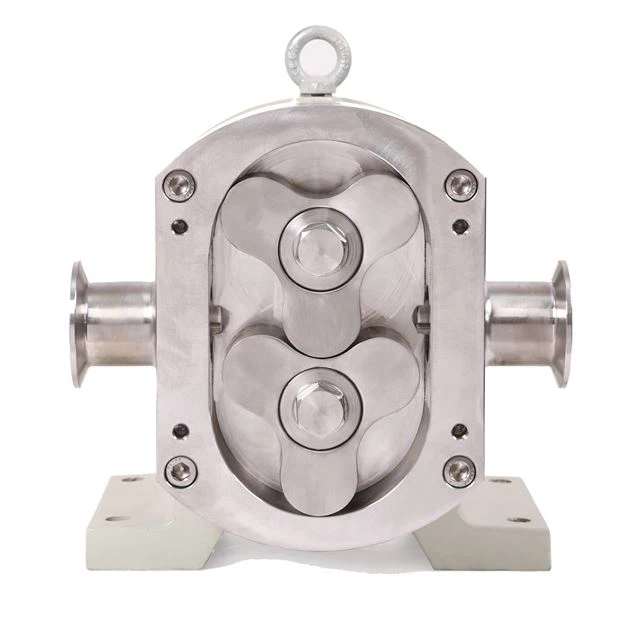

Lobe pumps are positive displacement pumps that use a set of rotating lobes to generate suction and discharge pressure. These pumps are preferred in the food processing industry because they provide a gentle, non-shearing transfer of the product, ensuring that the food does not lose its texture or flavor during processing. Moreover, the smooth operation of lobe pumps minimizes the risk of contamination, ensuring that the food remains safe for consumption.

Food grade lobe pumps are designed with food-safe materials and finishes, ensuring that the product is not contaminated during pumping. The construction of the pump is such that the product does not come into contact with any cast iron or aluminum parts during pumping. Instead, the pump’s parts that come into contact with the product are made of food-grade stainless steel or other food-safe materials that prevent the product from being contaminated.

Food grade lobe pumps come in various configurations, including single- and multi-lobe designs. Single lobe pumps are typically used for low-viscosity products, such as liquids, while multi-lobe pumps are ideal for thicker products, such as pastes and slurries. These pumps can handle a wide range of product viscosities, making them highly versatile and suitable for a variety of food processing applications.

Food grade lobe pumps offer many benefits to food processors. Firstly, they are highly efficient and can handle large volumes of product with minimal downtime. Secondly, these pumps provide a gentle and non-shearing transfer of the product, ensuring that the texture and flavor of the food are not compromised during processing. Additionally, they are easy to maintain and repair, minimizing the time and cost of downtime. Lastly, food grade lobe pumps are made of food-safe materials, ensuring that the product remains safe for consumption.

In conclusion, food grade lobe pumps are critical components in the food processing industry. Their efficient and gentle transfer of food products, combined with their food-safe construction, makes them ideal for use in food processing applications. Their versatility and reliability make them an essential investment for any food processor, ensuring the quality and safety of the food products they produce.

DATA SHEET

Model	Displacement L / 100RPM	Rotation speed	Corresponding flow rate	Power KW	Pressure	Maximum viscosity	Standard size	Connector form
YUY-Z-5	0.05	40-500	120-1500	0.55-0.75	0.1-1.2	200000	Φ25	Clamp Thread Flange
YUY-Z-10	0.10	40-500	240-3000	1.1-1.5	0.1-1.2	200000	Φ32
YUY-Z-15	0.15	40-500	320-4000	1.5-2.2	0.1-1.2	200000	Φ32
YUY-Z-20	0.20	40-500	480-5400	1.5-3	0.1-1.2	200000	Φ32
YUY-Z-35	0.35	40-450	840-9450	2.2-4	0.1-1.2	200000	Φ51
YUY-Z-45	0.45	40-450	950-10500	4	0.1-1.2	200000	Φ51
YUY-Z-65	0.65	40-400	1560-14000	5.5-7.5	0.1-1.2	200000	Φ63
YUY-Z-80	0.80	40-400	1750-17000	5.5-7.5	0.1-1.2	200000	Φ63
YUY-Z-110	1.10	40-400	2400-23500	7.5-11	0.1-1.2	200000	Φ76
YUY-Z-175	1.75	40-400	3800-37800	11-15	0.1-1.2	200000	Φ76
YUY-Z-220	2.20	40-400	4750-47500	15-18.5	0.1-1.2	200000	Φ89
YUY-Z-270	2.70	40-400	5800-58000	18.5-22	0.1-1.2	200000	Φ89
YUY-Z-365	3.65	40-400	7900-78500	22-30	0.1-1.2	200000	Φ102
YUY-Z-520	5.20	40-400	11300-110000	37-55	0.1-1.2	200000	Φ102
