PRODUCT DESCRIPTION
Chocolate Lobe Pump: Enhancing the Chocolate Production Industry
The chocolate manufacturing industry has seen tremendous growth in the past few years, and with this growth, the technology and machinery used in the industry have also seen a significant upgrade. One of the most important and sophisticated machinery used in the chocolate production process is the chocolate lobe pump. This pump has revolutionized the way chocolate is produced, stored, and transported, making it a crucial asset to the chocolate production industry.

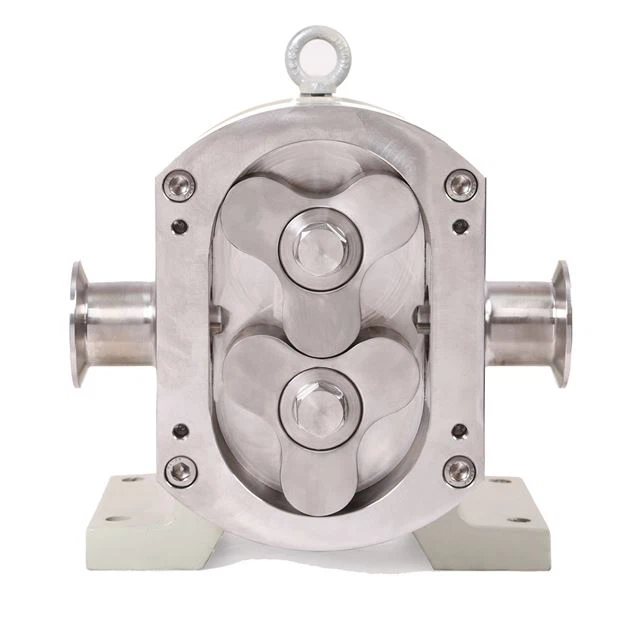

The chocolate lobe pump is a machine that pumps thick liquids with high viscosity without causing damage to the consistency of the liquid or its texture. The machine is usually made up of two parallel rotors that revolve around in a horizontal plane at a fixed distance from each other. The rotors are designed in a way that creates a cavity that is filled with the chocolate as it is pumped through the machine. The pump generates high pressure and velocity, which helps to break down the chocolate and make it more fluid and easy to handle.
This machine has brought about several advantages to the chocolate production industry. The first advantage is that it has enabled the industry to produce high-quality chocolate in large quantities. The lobe pump has made it possible to process a vast quantity of chocolate quickly and efficiently, making it possible for manufacturers to produce chocolate on a large scale, meeting the increasing demand for chocolate products.
Another significant advantage of the chocolate lobe pump is that it has improved the consistency of chocolate produced, ensuring that the chocolate remains smooth and homogeneous, with a consistent viscosity and texture. This uniformity is essential in producing high-quality chocolate products such as truffles, chocolate bars, and chocolate confections.
The machine has also made it possible for chocolate manufacturers to transport their products seamlessly from one place to another. Chocolate is a highly viscous and sticky liquid, making it difficult to move from one point to another without causing damage to its texture and consistency. The chocolate lobe pump makes it possible to pump the chocolate through tubes without damaging it, making transport more manageable and efficient.
In conclusion, the chocolate lobe pump has proved to be a crucial asset to the chocolate production industry, enhancing the quality and quantity of chocolate produced. The pump has revolutionized the way chocolate is manufactured, processed, and transported, enabling manufacturers to produce high-quality chocolate products to meet the increasing demand for chocolate. The chocolate lobe pump is indeed a significant technological advancement that has propelled the chocolate industry to greater heights, and its continued use is sure to bring about even more significant improvements in the industry.
DATA SHEET
Model | Displacement L / 100RPM | Rotation speed | Corresponding flow rate | Power KW | Pressure | Maximum viscosity | Standard size | Connector form |
YUY-Z-5 | 0.05 | 40-500 | 120-1500 | 0.55-0.75 | 0.1-1.2 | 200000 | Φ25 | Clamp Thread Flange |
YUY-Z-10 | 0.10 | 40-500 | 240-3000 | 1.1-1.5 | 0.1-1.2 | 200000 | Φ32 | |
YUY-Z-15 | 0.15 | 40-500 | 320-4000 | 1.5-2.2 | 0.1-1.2 | 200000 | Φ32 | |
YUY-Z-20 | 0.20 | 40-500 | 480-5400 | 1.5-3 | 0.1-1.2 | 200000 | Φ32 | |
YUY-Z-35 | 0.35 | 40-450 | 840-9450 | 2.2-4 | 0.1-1.2 | 200000 | Φ51 | |
YUY-Z-45 | 0.45 | 40-450 | 950-10500 | 4 | 0.1-1.2 | 200000 | Φ51 | |
YUY-Z-65 | 0.65 | 40-400 | 1560-14000 | 5.5-7.5 | 0.1-1.2 | 200000 | Φ63 | |
YUY-Z-80 | 0.80 | 40-400 | 1750-17000 | 5.5-7.5 | 0.1-1.2 | 200000 | Φ63 | |
YUY-Z-110 | 1.10 | 40-400 | 2400-23500 | 7.5-11 | 0.1-1.2 | 200000 | Φ76 | |
YUY-Z-175 | 1.75 | 40-400 | 3800-37800 | 11-15 | 0.1-1.2 | 200000 | Φ76 | |
YUY-Z-220 | 2.20 | 40-400 | 4750-47500 | 15-18.5 | 0.1-1.2 | 200000 | Φ89 | |
YUY-Z-270 | 2.70 | 40-400 | 5800-58000 | 18.5-22 | 0.1-1.2 | 200000 | Φ89 | |
YUY-Z-365 | 3.65 | 40-400 | 7900-78500 | 22-30 | 0.1-1.2 | 200000 | Φ102 | |
YUY-Z-520 | 5.20 | 40-400 | 11300-110000 | 37-55 | 0.1-1.2 | 200000 | Φ102 |
